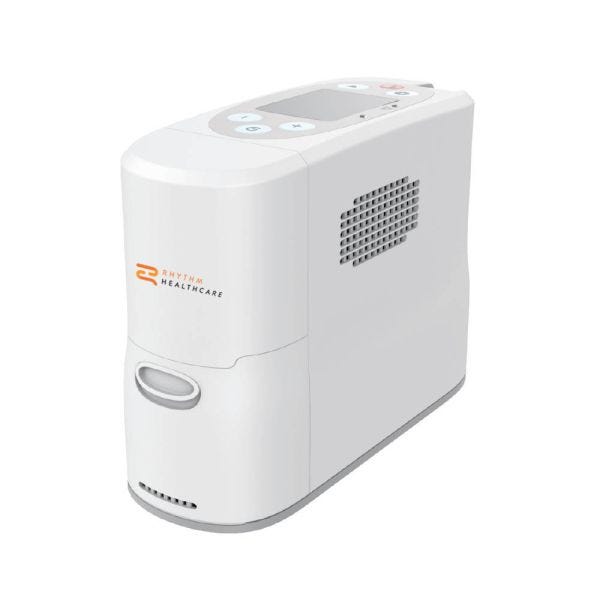

The P2 Oxygen Concentrator is prescribed for patients requiring supplemental oxygen. It supplies a high concentration of oxygen and is used with a nasal cannula to supply oxygen from the concentrator to the patient. The P2 is a small and portable device that can be used at home and can be taken with you while performing your daily activities.
Compact and lightweight.
Conveniently charge a backup battery while the device is in use. Charging time 2.5 hours. (additional purchase).
High efficiency, low noise. Excellent heat dissipation.
93% O2 concentration.
High absorption sieve bed.
Equivalent to up to 5L.
Includes AC/DC Car Charger.
Meets FAA travel requirements.
Size
3.3” W x 8.7” D x 6.3” H
Weight
4.37 lbs
Warm up time
2 minutes
Settings
Five Flow Settings (1-5)
Oxygen Concentration
87% - 96%
AC Power Supply
100-240v, 50-60hz (auto sensing to allow for worldwide use)
Rechargeable Battery
14.4VDC
Battery Rated Capacity
6.8Ah
Display Screen
2.8"
Battery
6800mAh, duration up to 5 hours on setting 1.
Approx. 4 hours charge time with AC.
Operation
Simple control functions and easy-to-read LCD display.
Use
Designed for 24/7 use.
Warranty:
Three years (excluding battery and sieve bed)
Components of the P2 Oxygen Concentrator
Settings
1 2 3 4 5
Breath Rate Rate Pulse Volumes (ml)
10 21 42 63 84 100
15 14 28 42 56 66.7
20 10.5 21 31.5 42 50
25 8.4 16.8 25.2 33.6 40
30 7 14 21 28 33.3
35 6 12 18 24 28.6
40 5.3 10.5 15.8 21 25
User Manual
| Availability | in stock |
|---|---|
| Quantity | No |
| AC Downloadable product | N/A |
| Manufacturer | Rhythm Healthcare |
| Brand | N/A |
| DC Power Options | N/A |
| Dimensions | L/W/H: 8.70in (22.1cm) / 3.35in (8.5cm ) / 6.30in (16.0cm) |
| Dimensions with Battery | N/A |
| Weight | 1.000000 |
| Weight with Battery | 4.37 pounds / 1.98Kg |
| Weight Without Battery | N/A |
| Sound Level | 49 dB(A) (on setting 2) |
| Warm-Up Time | 2 minutes |
| Flow Settings | Flow settings range from 1 to 5. |
| Flow Type | Pulse dose delivery system, 5 flow settings |
| Pulse Mode Setting | N/A |
| Continuous Flow Settings | N/A |
| Oxygen Purity | 87%-96% |
| Breath Rate | 10 to 40 BPM |
| Max Outlet Pressure | 25 PSI |
| AC Input Range | 100 to 240VAC 50 to 60 Hz |
| DC Output | N/A |
| Alarm Type | N/A |
| Ramp | N/A |
| Battery | 6800mAh, duration up to 5 hours on setting 1.Approx. 4 hours charge time with AC. |
| Battery Duration | Up to 5 hours |
| Battery Weight | N/A |
| Battery Dimensions | N/A |
| Battery Recharge Time | Not more than 4 hours |
| Noise Level | N/A |
| Operating Temperature | 41 to 104 ̊F (5 to 40 ̊C) |
| voltage_110 | N/A |
| Operating Humidity | 10% to 90%, non-condensing |
| Operating Altitude | N/A |
| Operating Environment | N/A |
| Storage Environment | Temperature: -4 to 158 ̊F (-20 to 70 ̊C) Humidity: 5% to 90%, non-condensing Store in a dry environment Altitude: 0 to 10,000 ft (0 to 3048 meters,70kPa to 106 kPa) |
| Transportation | Keep dry, Handle with care |
| Exhalation Relief | N/A |
| Flow Range | N/A |
| HCPCS | N/A |
| Humidity Range | N/A |
| Included in Box | N/A |
| Inspiratory trigger sensitivity | N/A |
| Liter Flow | N/A |
| Materials | N/A |
| Prescription Required | Yes |
| Recharge Time | 14.4VDC |
| Warranty | 3 years |
| Battery Type | N/A |
| Position in search results | N/A |
| Manufacturer | Rhythm Healthcare |
|---|---|
| Dimensions | L/W/H: 8.70in (22.1cm) / 3.35in (8.5cm ) / 6.30in (16.0cm) |
| Weight | 1.000000 |
| Weight with Battery | 4.37 pounds / 1.98Kg |
| Sound Level | 49 dB(A) (on setting 2) |
| Warm-Up Time | 2 minutes |
| Flow Settings | Flow settings range from 1 to 5. |
| Flow Type | Pulse dose delivery system, 5 flow settings |
| Oxygen Purity | 87%-96% |
| Breath Rate | 10 to 40 BPM |
| Max Outlet Pressure | 25 PSI |
| AC Input Range | 100 to 240VAC 50 to 60 Hz |
| Battery | 6800mAh, duration up to 5 hours on setting 1.Approx. 4 hours charge time with AC. |
| Battery Duration | Up to 5 hours |
| Battery Recharge Time | Not more than 4 hours |
| Operating Temperature | 41 to 104 ̊F (5 to 40 ̊C) |
| Operating Humidity | 10% to 90%, non-condensing |
| Storage Environment | Temperature: -4 to 158 ̊F (-20 to 70 ̊C) Humidity: 5% to 90%, non-condensing Store in a dry environment Altitude: 0 to 10,000 ft (0 to 3048 meters,70kPa to 106 kPa) |
| Transportation | Keep dry, Handle with care |
| Prescription Required | Yes |
| Recharge Time | 14.4VDC |
| Warranty | 3 years |
